All of our periodic reports filed with the Securities and Exchange Commission (SEC) pursuant to Section 13(a) or 15(d) of the Securities Exchange Act of 1934, as amended, are available, free of charge, through our website, www.fcx.com, including our annual reports on Form 10-K, quarterly reports on Form 10-Q, current reports on Form 8-K and any amendments to those reports. These reports and amendments are available through our website as soon as reasonably practicable after we electronically file or furnish such material to the SEC.

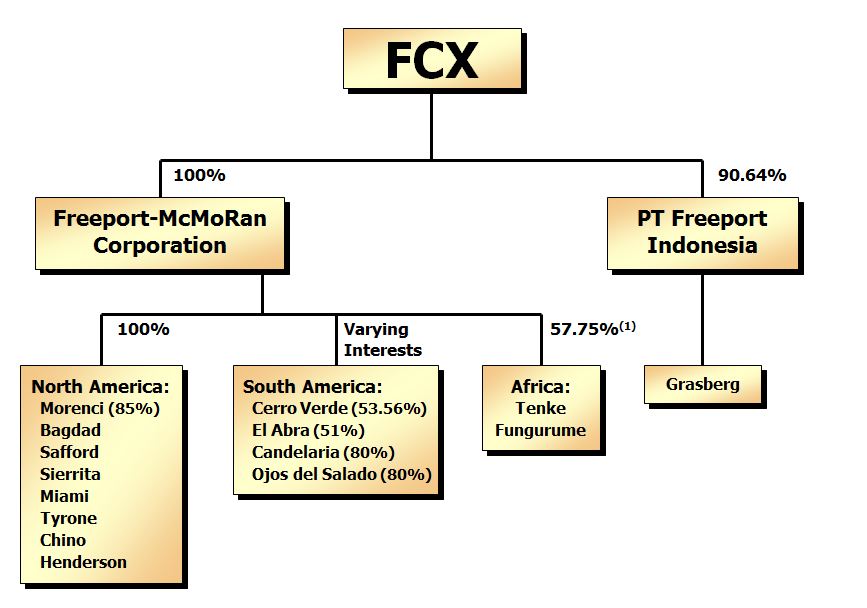

References to “we,” “us” and “our” refer to Freeport-McMoRan Copper & Gold Inc. (FCX) and its consolidated subsidiaries, including, except as otherwise stated, Phelps Dodge Corporation and its subsidiaries, which we acquired on March 19, 2007. In 2008, we changed Phelps Dodge Corporation’s legal name to Freeport-McMoRan Corporation (FMC). References to “Notes” refer to the Notes to Consolidated Financial Statements included herein (refer to Item 8), and references to “MD&A” refer to Management's Discussion and Analysis of Financial Condition and Results of Operations included herein (refer to Item 7).

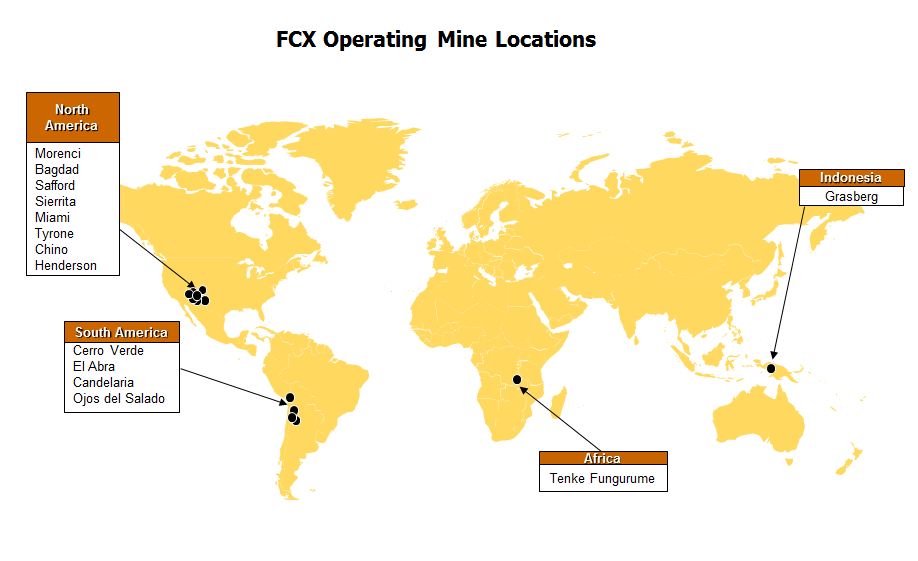

We are a leading international mining company with headquarters in Phoenix, Arizona, and we were incorporated under the laws of the state of Delaware on November 10, 1987. We are one of the world’s largest copper, gold and molybdenum mining companies in terms of reserves and production. Our portfolio of assets includes the Grasberg minerals district in Indonesia, significant mining operations in North and South America, and the Tenke Fungurume minerals district in the Democratic Republic of Congo (DRC). The Grasberg minerals district contains the largest single recoverable copper reserve and the largest single gold reserve of any mine in the world based on the latest available reserve data provided by third-party industry consultants.

We currently operate seven copper mines in North America – Morenci, Bagdad, Safford, Sierrita and Miami in Arizona, and Tyrone and Chino in New Mexico. Certain of our North America copper mines (primarily Sierrita, Bagdad and Morenci) also produce molybdenum concentrates.

We operate four copper mines in South America – Cerro Verde in Peru, and El Abra, Candelaria and Ojos del Salado in Chile. In addition to copper, the Cerro Verde mine also produces molybdenum concentrates, and the Candelaria and Ojos del Salado mines produce gold and silver.

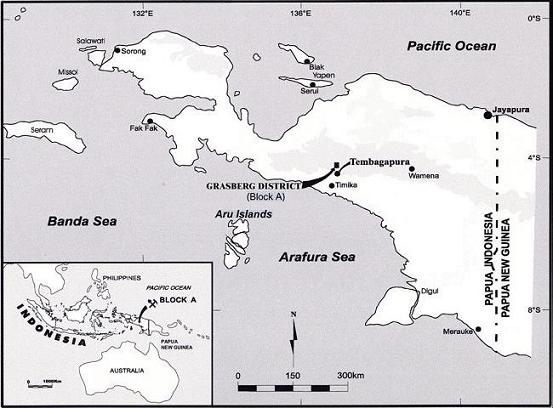

In Indonesia, PT Freeport Indonesia operates the mines in the Grasberg minerals district. In addition to copper, the Grasberg minerals district also produces significant quantities of gold and silver.

In Africa, Tenke Fungurume Mining S.A.R.L. (TFM) operates the mine in the Tenke Fungurume minerals district (the Tenke mine). In addition to copper, Tenke produces cobalt hydroxide.

A brief discussion of our primary metals appears below. For further discussion of the markets and prices of these metals refer to MD&A.

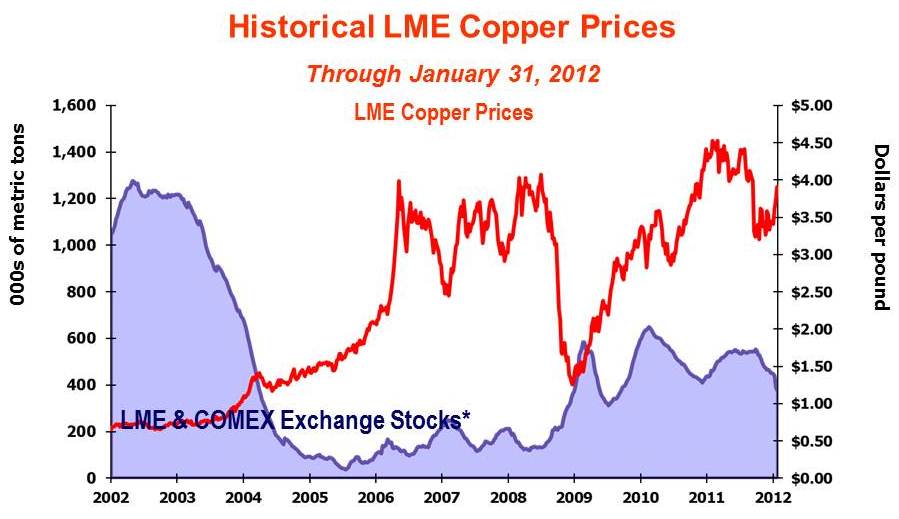

In general, demand for copper reflects the rate of underlying world economic growth, particularly in industrial production and construction. According to Brook Hunt, a widely followed independent metals market consultant, copper’s end-use markets (and their estimated shares of total consumption) are:

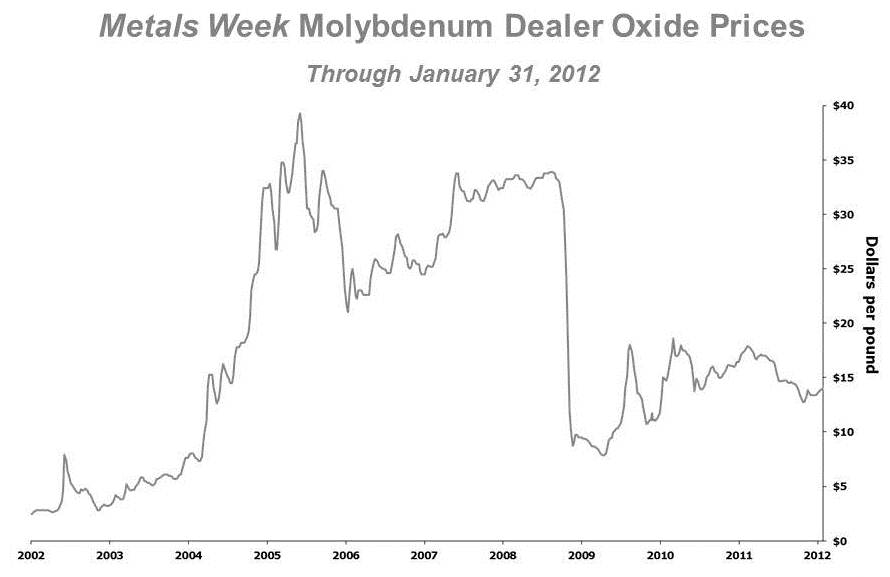

Molybdenum is a key alloying element in steel and the raw material for several chemical-grade products used in catalysts, lubrication, smoke suppression, corrosion inhibition and pigmentation. Molybdenum, as a high-purity metal, is also used in electronics such as flat-panel displays and in super alloys used in aerospace. Molybdenum’s end-use markets (and their estimated shares of total consumption) according to the International Molybdenum Association are:

Our copper mining operations provide Atlantic Copper with approximately 50 to 60 percent of its concentrate requirements at market prices. Following is a summary of Atlantic Copper's concentrate purchases from our copper mining operations and third parties for the last three years:

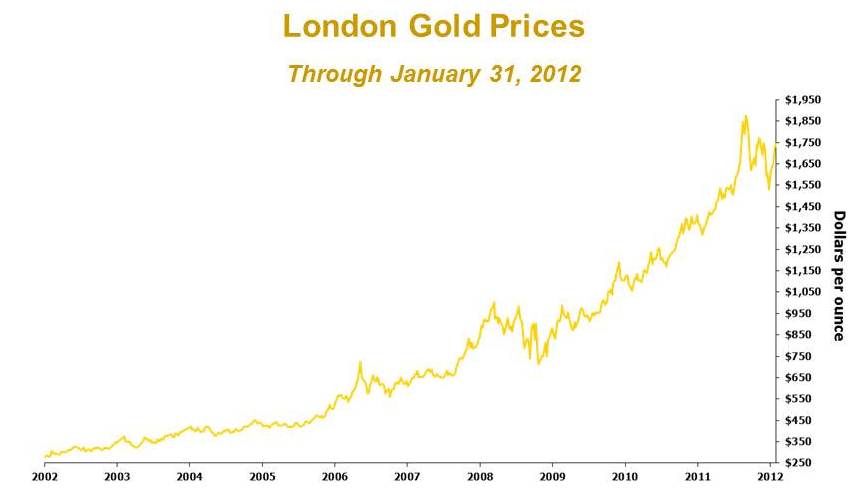

We also produce gold, primarily from the Grasberg minerals district. Gold is primarily sold as a component of our copper concentrate or in slimes, which are a by-product of the smelting and refining process. Gold generally is priced at the average London Bullion Market Association price for a specified month near the month of shipment. Revenues from gold sold as a component of our copper concentrate are recorded net of treatment and refining charges. Revenues from gold sold in slimes are recorded net of refining charges.

We are the world’s largest producer of molybdenum and molybdenum-based chemicals. In addition to production from our Henderson molybdenum mine, we produce molybdenum concentrate at certain of our North America copper mines, and at our Cerro Verde copper mine in Peru.

The majority of our molybdenum concentrates are processed in our own conversion facilities. Technical-grade oxide is produced from molybdenum concentrates in Sierrita, Arizona; Fort Madison, Iowa; and Rotterdam, the Netherlands. Ferromolybdenum is produced from technical-grade oxide in Stowmarket, United Kingdom, through a metallothermic reduction process. High-quality molybdenum concentrates are converted into molybdenum

metals, such as rhenium and magnetite, do not represent a significant component of our total consolidated revenues.

Following are maps and descriptions of our mining operations in North America (including both copper and molybdenum operations), South America, Indonesia and Africa.

In the U.S., most of the land occupied by our copper and molybdenum mines, concentrators, SX/EW facilities, smelter, refinery, rod mills, molybdenum roasters and processing facilities is generally owned by us or is located on unpatented mining claims owned by us. Certain portions of our Bagdad, Sierrita, Miami, Tyrone, Chino, Cobre and Henderson operations are located on government-owned land and are operated under a Mine Plan of Operations or other use permit. Various federal and state permits or leases on government land are held for purposes incidental to mine operations.

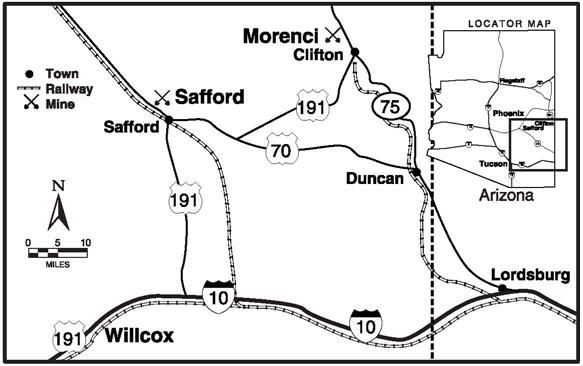

We own an 85 percent undivided interest in Morenci, with the remaining 15 percent owned by affiliates of Sumitomo Corporation. Each partner takes in kind its share of Morenci’s production.

Morenci is an open-pit copper mining complex that has been in continuous operation since 1939 and previously was mined through underground workings. Morenci is located in Greenlee County, Arizona, approximately 50 miles northeast of Safford on U.S. Highway 191. The site is accessible by a paved highway and a railway spur.

The Morenci mine is a porphyry copper deposit that has oxide and secondary sulfide mineralization, and primary sulfide mineralization. The predominant oxide copper mineral is chrysocolla. Chalcocite is the most important secondary copper sulfide mineral with chalcopyrite as the dominant primary copper sulfide.

The Morenci operation consists of a 50,000 metric ton-per-day concentrator, that produces copper and molybdenum concentrates; a 68,000 metric ton-per-day crushed-ore leach pad and stacking system; a low-grade run-of-mine (ROM) leaching system; four SX plants; and three EW tank houses that produce copper cathode. Total EW tank house capacity is approximately 900 million pounds of copper per year. Morenci’s concentrate leach, direct-electrowinning facility was commissioned in third-quarter 2007 and processed copper concentrate until early 2009 when it was placed on care-and-maintenance status. The available mining fleet consists of 102 235-metric ton haul trucks loaded by 11 shovels with bucket sizes ranging from 42 to 55 cubic meters, which are capable of moving over 750,000 metric tons of material per day.

Morenci is located in a desert environment with rainfall averaging 13 inches per year. The highest bench elevation is 2,000 meters above sea level and the ultimate pit bottom is expected to have an elevation of 840 meters above sea level. The Morenci operation encompasses approximately 56,732 acres, comprising 50,235 acres of patented mining claims and other fee lands, 6,002 acres of unpatented mining claims, and 495 acres of land held by state or federal permits, easements and rights-of-way.

The Morenci operation's electrical power is primarily sourced from Tucson Electric Power Company, Arizona Public Service Company and the Luna Energy facility in Deming, New Mexico (in which we own a one-third interest). Although we believe the Morenci operation has sufficient water sources to support current operations, we are a party to litigation that may impact our water rights claims or rights to continued use of currently available water supplies, which could adversely affect our water supply for the Morenci operation. Refer to Item 1A. "Risk Factors" and Item 3. “Legal Proceedings,” for further discussion.

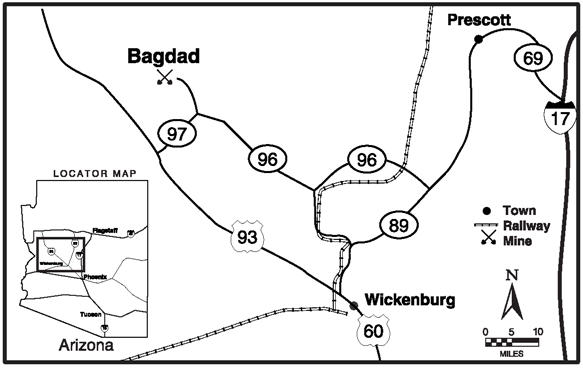

Our wholly owned Bagdad mine is an open-pit copper and molybdenum mining complex located in Yavapai County in west-central Arizona. It is approximately 60 miles west of Prescott and 100 miles northwest of Phoenix. The property can be reached by Arizona Highway 96, which ends at the town of Bagdad. The closest railroad is at Hillside, Arizona, approximately 24 miles southeast on Arizona Highway 96. The open-pit mining operation has been ongoing since 1945, and prior mining was conducted through underground workings.

The Bagdad mine is a porphyry copper deposit containing both sulfide and oxide mineralization. Chalcopyrite and molybdenite are the dominant primary sulfides and are the primary economic minerals in the mine. Chalcocite is the most common secondary copper sulfide mineral, and the predominant oxide copper minerals are chrysocolla, malachite and azurite.

The Bagdad operation consists of a 75,000 metric ton-per-day concentrator that produces copper and molybdenum concentrates, an SX/EW plant that can produce up to 25 million pounds per year of copper cathode from solution generated by low-grade stockpile leaching and a pressure leach plant to process molybdenum concentrates. The available mining fleet consists of 30 235-metric ton haul trucks loaded by five shovels with bucket sizes ranging from 40 to 56 cubic meters, which are capable of moving over 200,000 metric tons of material per day.

Bagdad is located in a desert environment with rainfall averaging 15 inches per year. The highest bench elevation is 1,200 meters above sea level and the ultimate pit bottom is expected to be 310 meters above sea level. The Bagdad operation encompasses approximately 21,743 acres, comprising 21,143 acres of patented mining claims and other fee lands, and 600 acres of unpatented mining claims.

Bagdad receives electrical power from Arizona Public Service Company. Although we believe the Bagdad operation has sufficient water sources to support current operations, we are a party to litigation that may set legal precedents, which could adversely affect our water rights at Bagdad and at our other properties in Arizona. Refer to Item 3. “Legal Proceedings,” for information concerning the status of these proceedings.

Our wholly owned Safford mine has been in operation since 2007 and is an open-pit copper mining complex located in Graham County, Arizona, approximately eight miles north of the town of Safford and 170 miles east of Phoenix. The site is accessible by paved county road off U.S. Highway 70.

The Safford mine includes two copper deposits that have oxide mineralization overlaying primary copper sulfide mineralization. The predominant oxide copper minerals are chrysocolla and copper-bearing iron oxides with the predominant copper sulfide material being chalcopyrite.

The property is a mine-for-leach project and produces copper cathodes. The operation consists of two open pits feeding a crushing facility with a capacity of 103,000 metric tons per day of crushed ore. The crushed ore is delivered to a single leach pad by a series of overland and portable conveyors. Leach solutions feed an SX/EW facility with a capacity of 240 million pounds of copper per year. The available mining fleet consists of 20 235-metric ton haul trucks loaded by four shovels with bucket sizes ranging from 31 to 34 cubic meters, which are capable of moving an average of approximately 225,000 metric tons of material per day.

During 2011, we completed construction of a sulphur burner at Safford, which is providing a more cost-effective source of sulphuric acid used in SX/EW operations and lower transportation costs.

Safford is located in a desert environment with rainfall averaging 10 inches per year. The highest bench elevation is 1,250 meters above sea level and the ultimate pit bottom is expected to have an elevation of 750 meters above sea level. The Safford operation encompasses approximately 24,957 acres, comprising 20,994 acres of patented lands, 3,932 acres of unpatented lands and 31 acres of land held by federal permit.

The Safford operation’s electrical power is primarily sourced from Tucson Electric Power Company, Arizona Public Service Company and the Luna Energy facility. Although we believe the Safford operation has sufficient water sources to support current operations, we are a party to litigation that may impact our water right claims or rights to continued use of currently available water supplies, which could adversely affect our water supply for the Safford operation. Refer to Item 1A. "Risk Factors" and Item 3. “Legal Proceedings,” for further discussion.

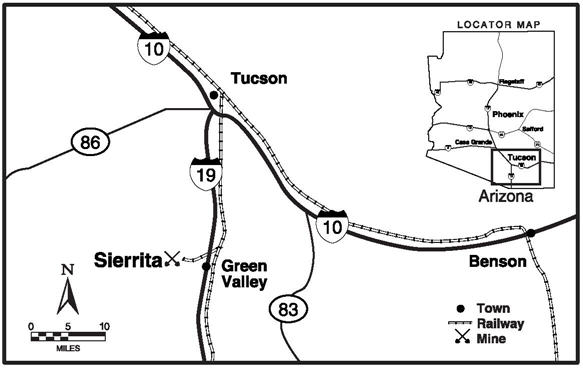

Our wholly owned Sierrita mine has been in operation since 1959 and is an open-pit copper and molybdenum mining complex located in Pima County, Arizona, approximately 20 miles southwest of Tucson and seven miles west of the town of Green Valley and Interstate Highway 19. The site is accessible by a paved highway and by rail.

The Sierrita mine is a porphyry copper deposit that has oxide and secondary sulfide mineralization, and primary sulfide mineralization. The predominant oxide copper minerals are malachite, azurite and chrysocolla. Chalcocite is the most important secondary copper sulfide mineral, and chalcopyrite and molybdenite are the dominant primary sulfides.

The Sierrita operation includes a 102,000 metric ton-per-day concentrator that produces copper and molybdenum concentrates. Sierrita also produces copper from a ROM oxide-leaching system. Cathode copper is plated at the Twin Buttes EW facility, which has a design capacity of approximately 50 million pounds of copper per year. In 2004, a copper sulfate crystal plant began production, which has the capacity to produce 40 million pounds of copper sulfate per year. The Sierrita operation also has molybdenum facilities consisting of a leaching circuit, two molybdenum roasters and a packaging facility. The molybdenum facilities process molybdenum concentrate produced by Sierrita, from our other mines and from third-party sources. The available mining fleet consists of 25 235-metric ton haul trucks loaded by four shovels with bucket sizes ranging from 34 to 56 cubic meters, which are capable of moving an average of 200,000 metric tons of material per day.

Sierrita is located in a desert environment with rainfall averaging 12 inches per year. The highest bench elevation is 1,160 meters above sea level and the ultimate pit bottom is expected to be 440 meters above sea level. The Sierrita operation, including the adjacent Twin Buttes site (refer to "Development Projects and Exploration" for further discussion), encompasses approximately 27,000 acres, comprising 13,282 acres of patented mining claims and other fee lands, 11,694 acres of unpatented mining claims and 2,024 acres of leased lands.

Sierrita receives electrical power through long-term contracts with the Tucson Electric Power Company. Although we believe the Sierrita operation has sufficient water sources to support current operations, we are a party to litigation that may impact our water rights claims or rights to continued use of currently available water supplies, which could adversely affect our water supply for the Sierrita operation. Refer to Item 1A. "Risk Factors" and Item 3. “Legal Proceedings,” for further discussion.

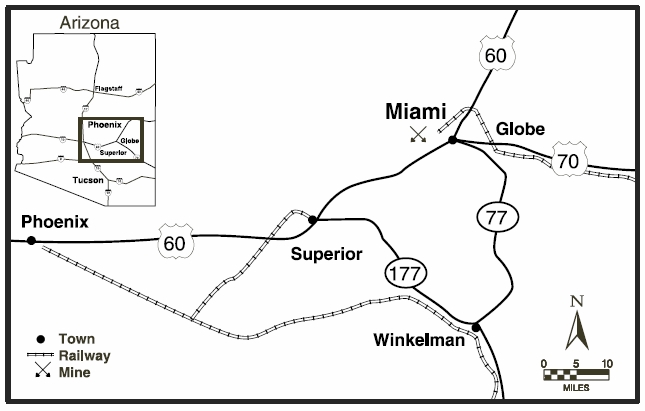

Our wholly owned Miami mine is an open-pit copper mining complex located in Gila County, Arizona, approximately 90 miles east of Phoenix and six miles west of the city of Globe on U.S. Highway 60. The site is accessible by a paved highway and by rail.

The Miami mine is developed on a porphyry copper deposit that has leachable oxide and secondary sulfide mineralization. The predominant oxide copper minerals are chrysocolla, copper-bearing clays, malachite and azurite. Chalcocite and covellite are the most important secondary copper sulfide minerals.

Since about 1915, the Miami mining operation had processed copper ore using both flotation and leaching technologies. Current operations include leaching with copper recovered (from solution) by the SX/EW process. The design capacity of the SX/EW plant is 200 million pounds of copper per year. The available mining fleet consists of 24 227-metric ton haul trucks loaded by 3 shovels with bucket sizes ranging from 31 to 34 cubic meters, which are capable of moving an average of approximately 155,000 metric tons of material per day.

Miami is located in a desert environment with rainfall averaging 18 inches per year. The highest bench elevation is 1,390 meters above sea level, and the ultimate pit bottom will have an elevation of 810 meters above sea level. The Miami operation encompasses approximately 9,058 acres, comprising 8,725 acres of patented mining claims and other fee lands and 333 acres of unpatented mining claims.

Miami receives electrical power through long-term contracts with the Salt River Project and natural gas through long-term contracts with El Paso Natural Gas as the transporter. Although we believe the Miami operation has sufficient water sources to support current operations, we are a party to litigation that may impact our water right claims or rights to continued use of currently available water supplies, which could adversely affect our water supply for the Miami operation. Refer to Item 1A. "Risk Factors" and Item 3. “Legal Proceedings,” for further discussion.

Tyrone

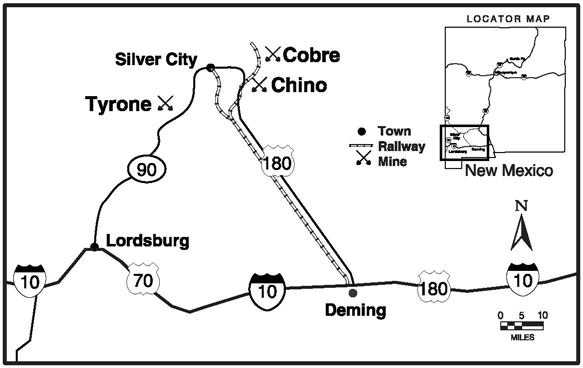

Our wholly owned Tyrone mine is an open-pit copper mining complex which has been in operation since 1967. It is located in southwestern New Mexico in Grant County, approximately 10 miles south of Silver City, New Mexico, along State Highway 90. The site is accessible by paved road and rail.

The Tyrone mine is a porphyry copper deposit. Mineralization is predominantly secondary sulfide consisting of chalcocite with leachable oxide mineralization consisting of chrysocola.

Copper processing facilities consist of a SX/EW operation with a maximum capacity of 153 million pounds of copper cathodes per year. The available mining fleet consists of 20 240-metric ton haul trucks loaded by three shovels with bucket sizes ranging from 17 to 47 cubic meters, which are capable of moving an average of 136,000 metric tons of material per day.

Tyrone is located in a desert environment with rainfall averaging 16 inches per year. The highest bench elevation is 2,000 meters above sea level and the ultimate pit bottom is expected to have an elevation of 1,500 meters above sea level. The Tyrone operation encompasses approximately 35,200 acres, comprising 18,755 acres of patented mining claims and other fee lands, and 16,445 acres of unpatented mining claims.

Tyrone receives electrical power from the Luna Energy facility and from the open market. We believe the Tyrone operation has sufficient water resources to support current operations.

Chino

Our wholly owned Chino mine is an open-pit copper mining complex located in southwestern New Mexico in Grant County, approximately 15 miles east of the town of Silver City off of State Highway 180. The mine is accessible by paved roads and by rail. Chino has been in operation since 1910.

The Chino mine is a porphyry copper deposit with adjacent copper skarn deposits. There is leachable oxide and secondary sulfide mineralization, and millable primary sulfide mineralization. The predominant oxide copper minerals are chrysocolla and azurite. Chalcocite is the most important secondary copper sulfide mineral, and chalcopyrite and molybdenite the dominant primary sulfides.

The Chino operation consists of a 39,000 metric ton-per-day concentrator that produces copper and molybdenum concentrates, and a 150 million pound-per-year SX/EW plant that produces copper cathode from solution generated by ROM leaching. The available mining fleet consists of 34 240-metric ton haul trucks loaded by four shovels with bucket sizes ranging from 42 to 48 cubic meters, which are capable of moving an average of 218,000 metric tons of material per day.

Chino is located in a desert environment with rainfall averaging 16 inches per year. The highest bench elevation is 2,250 meters above sea level, and the ultimate pit bottom is expected to be 1,500 meters above sea level. The Chino operation encompasses approximately 118,623 acres comprising 113,221 acres of patented mining claims and other fee lands, and 5,402 acres of unpatented mining claims.

Chino receives power from the Luna Energy Facility and from the open market. We believe Chino has sufficient water resources to support current operations.

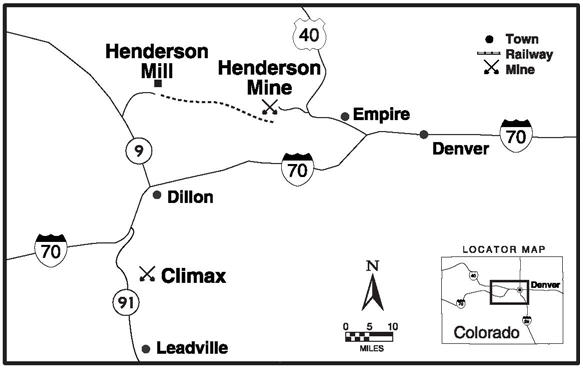

Our wholly owned Henderson molybdenum mine has been in operation since 1976 and is located approximately 42 miles west of Denver, Colorado, off U.S. Highway 40. Nearby communities include the towns of Empire, Georgetown and Idaho Springs. The Henderson mill site is located approximately 15 miles west of the mine and is accessible from Colorado State Highway 9. The Henderson mine and mill are connected by a 10-mile conveyor tunnel under the Continental Divide and an additional five-mile surface conveyor. The tunnel portal is located five miles east of the mill.

The Henderson mine is a porphyry molybdenum deposit with molybdenite as the primary sulfide mineral.

The Henderson operation consists of a large block-cave underground mining complex feeding a concentrator with a current capacity of approximately 32,000 metric tons per day. Henderson has the capacity to produce approximately 40 million pounds of molybdenum per year. The majority of the molybdenum concentrate produced is shipped to our Fort Madison, Iowa, processing facility. The available underground mining equipment fleet consists of 13 nine-metric ton load-haul-dump (LHD) units and six 73-metric ton haul trucks, which deliver ore to a gyratory crusher feeding a series of three overland conveyors to the mill stockpiles.

The Henderson mine is located in a mountain region with the main access shaft at 3,180 meters above sea level. The main production levels are currently at elevations of 2,200 and 2,350 meters above sea level. This region experiences significant snowfall during the winter months.

The Henderson mine and mill operations encompass approximately 11,878 acres, comprising 11,843 acres of patented mining claims and other fee lands, and a 35-acre easement with the U.S. Forest Service for the surface portion of the conveyor corridor.

Henderson operations receive electrical power through long-term contracts with Xcel Energy and natural gas through long-term contracts with Anadarko Energy Services Company, with Xcel Energy as the transporter. We believe the Henderson operation has sufficient water resources to support current operations.

In addition to the currently operating mines described above, we have four non-operating copper mines: Ajo, Bisbee and Tohono in Arizona, and Cobre in New Mexico; and the Climax molybdenum mine in Colorado.

Our four non-operating copper mines have been on care-and-maintenance status for several years and would require significant capital investment to return them to operating status.

Construction activities at the Climax molybdenum mine are substantially complete, and we expect to commence production during 2012. Production from the Climax molybdenum mine is expected to ramp up to a rate of 20 million pounds of molybdenum per year during 2013 and, depending on market conditions, may be increased to 30 million pounds of molybdenum per year. We intend to operate our Climax and Henderson molybdenum mines in a flexible manner to meet market requirements.

At our operations in South America, mine properties and facilities are controlled through mining claims or concessions under the general mining laws of the relevant country. The claims or concessions are owned or controlled by the operating companies in which we or our subsidiaries have a controlling ownership interest. Roads, power lines and aqueducts are controlled by easements.

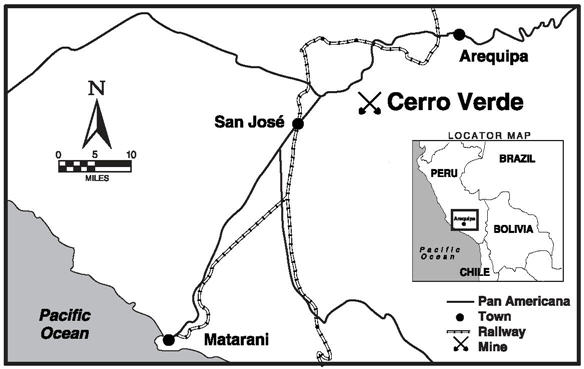

We have a 53.56 percent ownership interest in Cerro Verde, with the remaining 46.44 percent held by SMM Cerro Verde Netherlands B.V. (21.0 percent), Compañia de Minas Buenaventura S.A.A. (19.3 percent) and other stockholders whose shares are publicly traded on the Lima Stock Exchange (6.14 percent).

Cerro Verde is an open-pit copper and molybdenum mining complex that has been in operation since 1976 and is located 20 miles southwest of Arequipa, Peru. The site is accessible by paved highway.  Approximately one-third of Cerro Verde’s copper cathode production is sold locally and the remaining copper cathodes and concentrate production are transported approximately 70 miles by truck and rail to the Port of Matarani for shipment to international markets.

The Cerro Verde mine is a porphyry copper deposit that has oxide and secondary sulfide mineralization, and primary sulfide mineralization. The predominant oxide copper minerals are brochantite, chrysocolla, malachite and copper “pitch.” Chalcocite and covellite are the most important secondary copper sulfide minerals. Chalcopyrite and molybdenite are the dominant primary sulfides.

Cerro Verde’s current operation consists of an open-pit copper mine, a 120,000 metric tons of ore per day concentrator and SX/EW leaching facilities. Leach copper production is derived from a 39,000 metric ton-per-day crushed leach facility and a ROM leach system. This leaching operation has a capacity of approximately 200 million pounds of copper per year. The available fleet consists of 32 230-metric ton haul trucks loaded by five shovels with bucket sizes ranging in size from 21 to 53 cubic meters, which are capable of moving an average of approximately 308,000 metric tons of material per day.

Refer to “Development Projects and Exploration” for further discussion of the large-scale concentrator expansion project at Cerro Verde.

Cerro Verde is located in a desert environment with rainfall averaging 1.5 inches per year and is in an active seismic zone. The highest bench elevation is 2,900 meters above sea level and the ultimate pit bottom is expected to be 2,000 meters above sea level. Cerro Verde has a mining concession covering approximately 157,007 acres plus 24 acres of owned property and 79 acres of rights-of-way outside the mining concession area.

Cerro Verde receives electrical power under long-term contracts with Kallpa Generación SA and Empresa de Generación Eléctrica de Arequipa. Water for our Cerro Verde processing operations comes from renewable sources through a series of storage reservoirs on the Rio Chili watershed that collect water primarily from seasonal precipitation. Cerro Verde’s participation in the Pillones Reservoir Project has secured water rights that we believe will be sufficient to support Cerro Verde’s current operations.

In 2011, Cerro Verde reached an agreement with the Regional Government of Arequipa, the National Government, Servicio de Agua Potable y Alcantarillado de Arequipa S.A. (SEDAPAR) and other local institutions to allow it to finance the engineering and construction of a wastewater treatment plant, should Cerro Verde proceed with plans for a large-scale concentrator expansion. Once Cerro Verde obtains a license for the treated water, it would be used to supplement its existing water supplies to support the potential concentrator expansion.

For further discussion of risks associated with the availability of water, see Item 1A. “Risk Factors.”

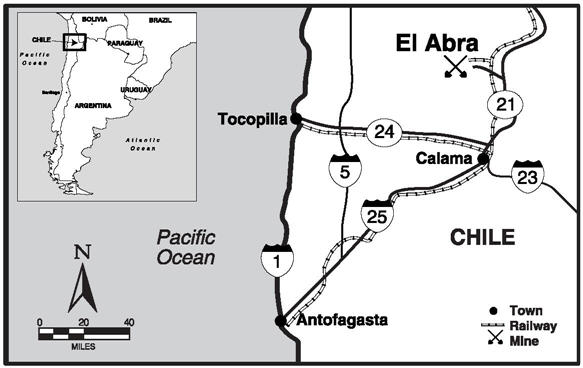

We own a 51 percent interest in El Abra, and the remaining 49 percent interest is held by the state-owned copper enterprise Corporación Nacional del Cobre de Chile (CODELCO).

El Abra is an open-pit copper mining complex that has been in operation since 1996 and is located 47 miles north of Calama in Chile’s El Loa province, Region II. The site is accessible by paved highway and by rail.

The El Abra mine is a porphyry copper deposit that has sulfide and oxide mineralization. The predominant primary sulfide copper minerals are bornite and chalcopyrite. There is a minor amount of secondary sulfide mineralization

as chalcocite. The oxide copper minerals are chrysocolla and pseudomalachite. There are lesser amounts of copper-bearing clays and tenorite.

The El Abra operation consists of an open-pit copper mine and an SX/EW facility with a capacity of 500 million pounds of copper cathode per year from a 115,000 metric ton-per-day crushed leach circuit and a similar-sized ROM leaching operation. The available fleet consists of 34 220-metric ton haul trucks loaded by four shovels with buckets ranging in size from 26 to 41 cubic meters, which are capable of moving an average of 223,000 metric tons of material per day.

During 2011, we commenced production from El Abra’s newly commissioned stacking and leaching facilities to begin transitioning from production of oxide to sulfide ores. Production from the sulfide ore will approximate 300 million pounds of copper per year, replacing the depleting oxide copper production.

El Abra is located in a desert environment with rainfall averaging less than one inch per year and is in an active seismic zone. The highest bench elevation is 4,180 meters above sea level and the ultimate pit bottom is expected to be 3,410 meters above sea level. El Abra controls a total of 151,272 acres of mining claims covering the ore deposit, stockpiles, process plant, and water wellfield and pipeline. In addition, El Abra has acquired land surface rights for the road between the processing plant and the mine, the water wellfield, power transmission lines and for the water pipeline from the Salar de Ascotán.

El Abra currently receives electrical power under a long-term contract with Electroandina. Water for our El Abra processing operations comes from pumping of groundwater from the Salar de Ascotán aquifer pursuant to regulatory approval. We believe El Abra has sufficient water rights to support current operations. For a discussion of risks associated with the availability of water, see Item 1A. “Risk Factors.”

Candelaria

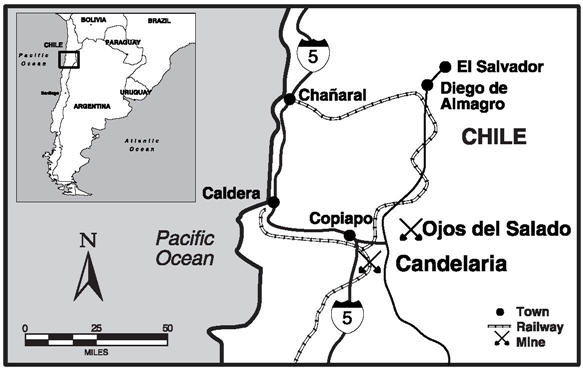

We have an 80 percent ownership interest in Candelaria, with the remaining 20 percent interest owned by affiliates of Sumitomo Corporation.

Candelaria’s open-pit copper mine has been in operation since 1993 and the underground mine has been in operation since 2005. The Candelaria copper mining complex is located approximately 12 miles south of Copiapó in northern Chile’s Atacama province, Region III. The site is accessible by two maintained dirt roads, one coming through the Tierra Amarilla community and the other off of Route 5 of the International Pan-American Highway. Copper concentrates are transported by truck to the Punta Padrones port facility located in Caldera, approximately 50 miles northwest of the mine.

The Candelaria mine is an iron oxide, copper and gold deposit. Primary sulfide mineralization consists of chalcopyrite.

The Candelaria operation consists of an open-pit copper mine and a 6,000 metric ton-per-day underground copper mine, which is mined by sublevel stoping, feeding a 75,000 metric ton-per-day concentrator.  The available fleet consists of 46 225-metric ton haul trucks loaded by six shovels with bucket sizes ranging from 28 to 43 cubic meters, which are capable of moving 250,000 metric tons of material per day.

Candelaria is located in a desert environment with rainfall averaging less than one inch per year and is in an active seismic zone. The highest bench elevation is 675 meters above sea level and the ultimate pit bottom is expected to

be 32 meters below sea level. The Candelaria property encompasses approximately 13,390 acres, including approximately 125 acres for the port facility in Caldera. The remaining property consists of mineral rights owned by us in which the surface is not owned but controlled by us, which is consistent with Chilean law.

Candelaria receives electrical power through long-term contracts with Empresa Eléctrica Guacolda S.A., a local energy company. Candelaria’s water supply comes from well fields in the area of Tierra Amarilla and Copiapó that draw water from the Copiapó River aquifer. Because of rapid depletion of that aquifer in recent years, Candelaria is expanding its sources of water supply. During 2010, we completed construction of a pipeline to bring water from a nearby water treatment facility. We have also completed engineering and began construction for a desalination plant near the Pacific Ocean that will supply all of Candelaria’s longer term water needs. The plant is expected to be completed in early 2013. For further discussion of risks associated with the availability of water, see Item 1A. “Risk Factors.”

Ojos del Salado

We have an 80 percent ownership interest in Ojos del Salado, with the remaining 20 percent interest owned by affiliates of Sumitomo Corporation.

The Ojos del Salado operation began commercial production in 1929 and consists of two underground copper mines (Santos and Alcaparrosa) and a 3,800 metric ton-per-day concentrator. The operation is located approximately 10 miles east of Copiapó in northern Chile’s Atacama province, Region III, and is accessible by paved highway. The Ojos del Salado mines are iron oxide and copper and gold deposits. Primary sulfide mineralization consists of chalcopyrite.

The Ojos del Salado operation has a capacity of 3,800 metric tons per day of ore from the Santos underground mine and 4,000 metric tons of ore per day from the Alcaparrosa underground mine. The ore from both mines is mined by sublevel stoping since both the ore and enclosing rocks are competent. The broken ore is removed from the stopes using scoops and loaded into an available fleet of 26 28-metric ton trucks, which transport the ore to the surface. The ore from the Santos mine is hauled directly to the Ojos del Salado mill for processing, and the ore from the Alcaparrosa mine is reloaded into six 54-metric ton trucks and hauled seven miles to the Candelaria mill for processing. The Ojos del Salado concentrator has the capacity to produce over 30 million pounds of copper and 9,000 ounces of gold per year. Tailings from the Ojos del Salado mill are pumped to the Candelaria tailings facility for final deposition. The Candelaria facility has sufficient capacity for the remaining Ojos del Salado tailings.

Ojos del Salado is located in a desert environment with rainfall averaging less than one inch per year and is in an active seismic zone. The highest underground level is at an elevation of 500 meters above sea level, with the lowest underground level at 150 meters above sea level. The Ojos del Salado mineral rights encompass approximately 15,815 acres, which includes approximately 6,784 acres of owned land in and around the Ojos del

Salado underground mines and plant site. The remaining property consists of mineral rights owned by us in which the surface is not owned but controlled by us, which is consistent with Chilean law.

Ojos del Salado receives electrical power through long-term contracts with Empresa Eléctrica Guacolda S.A. Ojos del Salado’s water supply comes from well fields in the area of Tierra Amarilla and Copiapó that draw water from the Copiapó River aquifer. For a discussion of risks associated with the availability of water, see Item 1A. “Risk Factors.”

We have established certain unincorporated joint ventures with Rio Tinto plc (Rio Tinto). Under the joint venture arrangements, Rio Tinto has a 40 percent interest in PT Freeport Indonesia’s Contract of Work (COW) and the option to participate in 40 percent of any other future exploration projects in Papua, Indonesia. Refer to Note 2 for further discussion.

PT Irja Eastern Minerals (Eastern Minerals), of which we own 100 percent, conducts exploration in Papua through a joint venture agreement under a separate COW. We expect Eastern Minerals' exploration area to be reduced to approximately 283,000 acres once the DEMR formally accepts Eastern Minerals' relinquishment of approximately

164,000 acres.

Under a joint venture agreement through PT Nabire Bakti Mining (PTNBM), we conduct exploration activities under a separate COW in an area in three parcels contiguous to PT Freeport Indonesia’s Block B and one of Eastern Minerals’ blocks. We expect PTNBM's exploration area to be reduced to approximately 301,000 acres once the DEMR formally accepts PTNBM's relinquishment of approximately 192,000 acres.

In 2009, Indonesia enacted a new mining law, which will operate under a licensing system as opposed to the contract of work system that applies to PT Freeport Indonesia, Eastern Minerals and PTNBM. In 2011 and 2010, the Government of Indonesia promulgated regulations under the 2009 mining law and certain provisions that address existing contracts of work. The laws and regulations provide that contracts of work will continue to be honored until their expiration. However, the regulations attempt to apply certain provisions of the new law to existing contracts of work and may seek to apply the licensing system to any extension periods of contracts of work, even though our COW provides for two 10-year extension periods subject to Indonesian government approval, which pursuant to the COW cannot be withheld or delayed unreasonably. In February 2012, a new regulation was adopted that would require mining companies in Indonesia to process all minerals domestically and possibly ban export of concentrates and other unrefined minerals. PT Freeport Indonesia's existing COW includes specific provisions that define PT Freeport Indonesia's rights to export product and obligate it to develop domestic smelting facilities, if commercially feasible, or to contract with other domestic smelters on a market basis. In connection with the obligations under its COW, in 1995, PT Freeport Indonesia constructed the only copper smelter and refinery in Indonesia, which is owned and operated by PT Smelting.

In January 2012, the President of Indonesia issued a decree calling for the creation of a team to evaluate contracts of work for adjustment to the 2009 Mining Law, and accordingly, to take steps to assess and negotiate size of work areas, government revenues and domestic processing of minerals (refer to Item 1A. "Risk Factors" for further discussion). We intend to continue to work cooperatively with the Government of Indonesia to complete this review and to seek extension of the COW beyond 2021, as provided under the terms of the COW. The COW can only be modified by mutual agreement between PT Freeport Indonesia and the Government of Indonesia.

Our principal source of power for all our Indonesian operations is a coal-fired power plant that we built in 1998. Diesel generators supply peaking and backup electrical power generating capacity. A combination of naturally occurring mountain streams and water derived from our underground operations provides water for our operations. Our Indonesian operations are in an active seismic zone and experience average annual rainfall of approximately 200 inches.

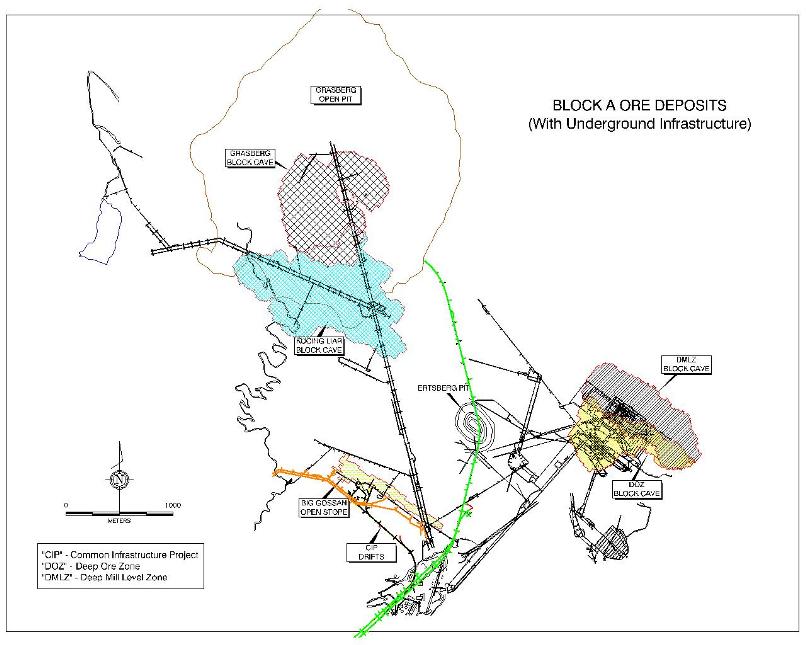

Grasberg Open Pit

The current equipment fleet consists of over 500 units. The larger mining equipment directly associated with production includes an available fleet of 163 haul trucks with payloads ranging from approximately 215 metric tons to 330 metric tons and 18 shovels with bucket sizes ranging from 30 cubic meters to 42 cubic meters, which moved an average of 486,000 metric tons of material per day during 2011 and 701,000 metric tons per day in 2010. The decrease in 2011 primarily reflects the impact of labor disruptions and the temporary suspension of milling operations in fourth-quarter 2011 because of damage to the concentrate and fuel pipelines (refer to MD&A for

further discussion).

Grasberg crushing and conveying systems are integral to the mine and provide the capacity to transport up to 225,000 metric tons per day of Grasberg ore to the mill and 135,000 metric tons per day of overburden to the overburden stockpiles. The remaining overburden is moved by haul trucks.

DOZ mine

The DOZ mine fleet consists of over 195 pieces of mobile heavy equipment, which is capable of moving an average of 80,000 metric tons of material per day. The primary mining equipment directly associated with production and development includes an available fleet of 52 LHD units and 25 haul trucks. Our production LHD units typically carry approximately 11 metric tons of ore. Using ore passes and chutes, the LHD units transfer ore into 55-metric ton capacity haul trucks. The trucks dump into two gyratory crushers and the ore is then conveyed to the surface stockpiles.

Big Gossan mine

The Big Gossan mine lies underground and adjacent to the current mill site. It is a tabular, near vertical ore body with approximate dimensions of 1,200 meters along strike and 800 meters down dip with varying thicknesses from 20 meters to 120 meters.  The mine utilizes a blasthole stoping method with delayed paste backfill.  Stopes of varying sizes are mined and the ore dropped down passes to a truck haulage level.  Trucks are chute loaded and transport the ore to a jaw crusher.  The crushed ore is then hoisted vertically via a two skip production shaft to a level where it is loaded onto a conveyor belt.  The belt carries the ore to one of the main underground conveyors where the ore is transferred and carried to the surface mill stockpile for processing.

Production from the Big Gossan mine began in fourth-quarter 2010 and is designed to ramp up to 7,000 metric tons of ore per day by mid-2013, which will result in average annual aggregate incremental production of 125 million pounds of copper and 65,000 ounces of gold, with PT Freeport Indonesia receiving 60 percent of these amounts.

The copper mineralization in these skarn deposits is dominated by chalcopyrite, but higher bornite concentrations are common. Moreover, gold occurs in significant concentrations in all of the district’s ore bodies, though rarely visible to the naked eye. These gold concentrations usually occur as inclusions within the copper sulfide minerals, though, in some deposits, these concentrations can also be strongly associated with pyrite.

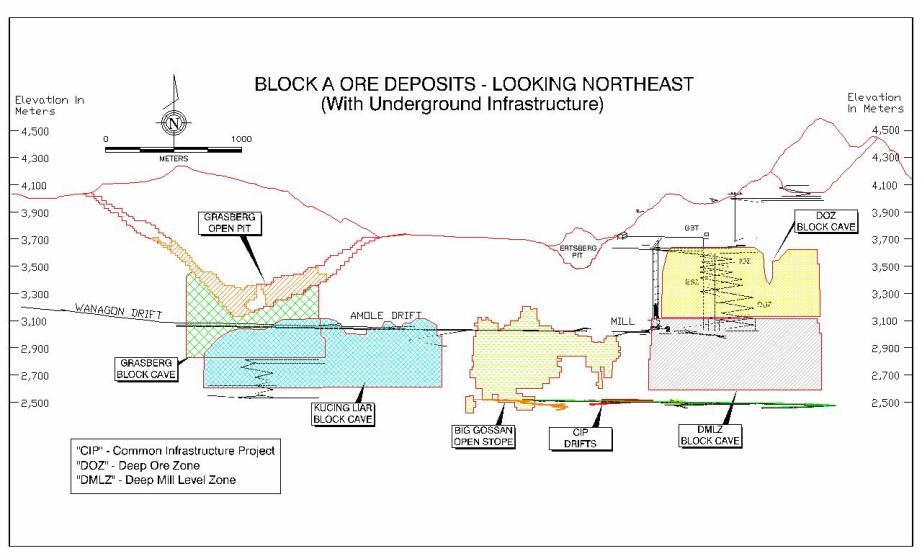

The following diagram indicates the relative elevations (in meters) of our reported ore bodies.

TFM is organized under the laws of the DRC, and we currently own an effective 57.75 percent interest. The remaining ownership interests are held by Lundin Mining Corporation (Lundin) (currently an effective 24.75 percent interest) and La Générale des Carrières et des Mines (Gécamines), which is wholly owned by the Government of the DRC (currently a 17.5 percent non-dilutable interest).

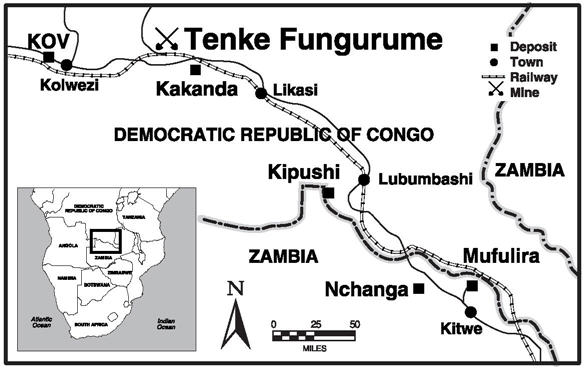

The Tenke Fungurume deposits are located in the Katanga province of the DRC approximately 110 miles northwest of Lubumbashi and are accessible by unpaved roads and by rail. The deposits are sediment-hosted copper and cobalt deposits with oxide, mixed oxide-sulfide and sulfide mineralization. The dominant oxide minerals are malachite, pseudomalachite and heterogenite. Important sulfide minerals consist of bornite, carrollite, chalcocite and chalcopyrite.

We are undertaking a second phase of the project, which would include optimizing the current plant and increasing capacity (refer to “Development Projects and Exploration” for further discussion of the Tenke mill expansion project). We continue to engage in drilling activities, exploration analyses and metallurgical testing to evaluate the potential of the highly prospective Tenke Fungurume minerals district. These analyses are being incorporated into future

plans to evaluate opportunities for expansion. Future expansions are subject to a number of factors, including economic and market conditions and the business and investment climate in the DRC.

The Tenke Fungurume minerals district is located in a tropical region; however, temperatures are moderated by its higher altitudes. Weather in this region is characterized by a dry season and a wet season, each lasting about six months with average rainfall of 47 inches per year. The highest bench elevation is expected to be 1,518 meters above sea level and the ultimate pit bottom is expected to be 1,110 meters above sea level. The Tenke Fungurume deposits are covered by six exploitation permits totaling 394,455 acres.

TFM has entered into long-term power supply and infrastructure funding agreements with La Société Nationale d’Electricité, the state-owned electric utility company serving the region. The results of a recent water exploration program, as well as the regional geological and hydro-geological conditions, indicate that adequate water is available for the project, and for hydro-electric generation during the expected life of the operation.

For comparative purposes, production and sales data shown below for the year ended December 31, 2007, combines our historical data with FMC's pre-acquisition data. As the pre-acquisition operating data represents the results of operations under FMC management, such combined data is not necessarily indicative of what past results would have been under FCX management or of future operating results.



We have increased production at several of our copper mines and have several projects and potential opportunities to expand production volumes, extend mine lives and develop large-scale underground ore bodies. Our near-term major development projects, which will require substantial additional capital investment, are presented below (refer to MD&A for further discussion of these projects, our other development projects and exploration activities).

In addition to the near-term development projects in progress in the Grasberg minerals district, we also have an additional long-term underground mine development project in the Grasberg minerals district for the Kucing Liar ore body, which lies on the southern flank of and underneath the southern portion of the Grasberg open pit at the 2,605-meter elevation level. We expect to mine the Kucing Liar ore body using the block-cave method; aggregate capital cost estimates for development of the Kucing Liar ore body are projected to approximate $2 billion (which are expected to be made between 2019 and 2031). Additionally, our current mine development plans include approximately $3 billion of capital expenditures at our processing facilities to optimize the handling of underground ore types once the Grasberg open-pit operations cease (we expect substantially all of these expenditures to be made between 2016 and 2030).

Considering the long-term nature and large size of our development projects, actual costs and timing could differ materially from our estimates. We continue to review our mine development and processing plans to maximize the value of our reserves.

In May 2011, Atlantic Copper successfully completed a scheduled 26-day maintenance turnaround.  Major maintenance turnarounds typically are expected to occur approximately every eight years for Atlantic Copper, with short-term maintenance turnarounds in the interim. The next long-term maintenance turnaround is scheduled for 2013.

PT Freeport Indonesia’s contract with PT Smelting provides for the supply of 100 percent of the copper concentrate requirements (subject to a minimum or maximum rate) necessary for PT Smelting to produce 205,000 metric tons of copper annually on a priority basis.  PT Freeport Indonesia also sells copper concentrate to PT Smelting (at market rates) for quantities in excess of 205,000 metric tons of copper annually.  Refer to Note 2 for further discussion of our investment in PT Smelting.

In 2008, PT Smelting completed a scheduled 25-day maintenance turnaround. Major maintenance turnarounds typically are expected to occur approximately every four years for PT Smelting, with significantly shorter term maintenance turnarounds in the interim. The next major maintenance turnaround is scheduled for May 2012.

Major maintenance turnarounds typically occur approximately every 14 months for the Miami smelter, with shorter term maintenance turnarounds in the interim.



The conversion facility located at our Sierrita mine consists of two molybdenum roasters that process molybdenum concentrates produced at our mines and on a toll basis for third parties. The facility produces molybdenum oxide and related products.



The Fort Madison facility consists of two molybdenum roasters, a sulphur dioxide conversion plant, a metallurgical (technical oxide) packaging facility, and a chemical conversion plant, which includes a wet-chemicals plant, sublimation equipment and molybdenum disulfide processing and packaging. In the chemical plant, molybdic oxide is further refined into various high-purity molybdenum chemicals for a wide range of uses by chemical and catalyst manufacturers. In addition to metallurgical oxide products, the Fort Madison facility produces ammonium dimolybdate, pure molybdic oxide, ammonium heptamolybdate, ammonium octamolybdate, sodium molybdate, sublimed pure molybdic oxide and molybdenum disulfide.



The Rotterdam facility consists of a molybdenum roaster, sulphuric acid plant, metallurgical packaging

facility and chemical conversion plant. The plant produces metallurgical products primarily for third parties. Ammonium dimolybdate and pure molybdic oxide are produced in the wet-chemicals plant.



We also produce ferromolybdenum for customers worldwide at our conversion plant located in Stowmarket, United Kingdom. The plant is operated both as an internal and external customer tolling facility.

MMR is engaged in the exploration, development and production of oil and natural gas in the shallow waters of the Gulf of Mexico Shelf. MMR is currently undertaking a major capital program to fund recent and planned additional exploration. Our investment allows us to participate in MMR’s highly prospective North American exploration and development activities, which have the potential to general significant value.

Several of our directors and executive officers also serve as directors or executive officers of MMR, and our wholly owned subsidiary FM Services Company (FM Services) provides certain executive, technical administrative, accounting, financial, tax and other services to us and to MMR on a cost-reimbursement basis. Refer to Part III, Item 13. “Certain Relationships and Related Transactions, and Director Independence,” for additional information.

Sulphuric acid is used in the SX/EW process and is produced as a by-product of the smelting process at our smelters and from our sulphur burners at the Safford and Tenke mines. Sulphuric acid needs in excess of the sulphuric acid produced by our operations are purchased from third parties as required.

Our mining operations also require significant quantities of water for mining, ore processing and related support facilities. Although we believe our mining operations have sufficient water rights, the loss of water rights for any of our mines, in whole or in part, or shortages of water to which we have rights, could require us to curtail or shut down mining operations. For a further discussion of risks and legal proceedings associated with the availability of water, refer to Item 1A. “Risk Factors” and Item 3. “Legal Proceedings.”

The top 10 producers of copper comprise approximately 50 percent of total worldwide mined copper production. We currently rank second among those producers at approximately nine percent of total worldwide estimated mined copper production. Our competitive position is based on the quality and grade of our ore bodies and our ability to manage costs compared with other producers. We have a diverse portfolio of mining operations with varying ore grades and cost structures. Our costs are driven by the location, grade and nature of our ore bodies and the level of input costs, including energy, labor and equipment. The metals markets are cyclical and our ability to maintain our competitive position over the long term is based on our ability to acquire and develop quality deposits, hire and retain a skilled workforce and to manage our costs.

Employees represented by unions are listed below, with the approximate number of employees represented and the expiration date of the applicable union agreements. Refer to Item 1A. "Risk Factors" for further information on labor agreements.

a. Negotiations are in progress while employees continue to work under the provisions of the expired contract.

We have adopted policies that govern our working relationships with the communities where we operate and are designed to guide our practices and programs in a manner that respects basic human rights and the culture of the local people impacted by our operations. We continue to make significant expenditures on community development, education, training and cultural programs, which include:

In December 2000, we endorsed the joint U.S. State Department-British Foreign Office Voluntary Principles on Human Rights and Security (Voluntary Principles). Several major natural resources companies and international human rights organizations participated in developing the Voluntary Principles and have endorsed them. We participated in developing these principles and they are incorporated into our human rights policy.

We believe that our social and economic development programs are responsive to the issues raised by the local communities near our areas of operation and should help us maintain good relations with the surrounding communities and avoid disruptions of mining operations. Nevertheless, social and political instability in the areas of our operations may adversely impact our mining operations. Refer to Item 1A. “Risk Factors” for further discussion.

Additionally, during 2006, the Peruvian government announced that all mining companies operating in Peru would be required to make annual contributions to local development funds for a five-year period (covering the years 2006 through 2010) when copper prices exceeded certain levels that were adjusted annually. The contribution, which expired in 2010, was equal to 3.75 percent of after-tax profits and totaled $41 million in 2010 and $28 million in 2009. Refer to Note 14 for further discussion.

PT Freeport Indonesia, and all businesses and residents of Indonesia, rely on the Indonesian government for the maintenance of public order, upholding the rule of law and the protection of personnel and property. The Grasberg minerals district has been designated by the Indonesian government as one of Indonesia’s vital national assets. This designation results in the police and to a lesser extent, the military, playing a significant role in protecting the area of our operations. The Indonesian government is responsible for employing police and military personnel and directing their operations.

From the outset of PT Freeport Indonesia’s operations, the Indonesian government has looked to PT Freeport Indonesia to provide logistical and infrastructure support and assistance for these necessary services because of the limited resources of the Indonesian government and the remote location of and lack of development in Papua. PT Freeport Indonesia’s financial support for the Indonesian government security institutions assigned to the operations area represents a prudent response to its requirements to protect its workforce and property, better

ensuring that personnel are properly fed and lodged, and have the logistical resources to patrol PT Freeport Indonesia’s roads and secure its operating area. In addition, the provision of such support is consistent with PT Freeport Indonesia’s obligations under the COW, reflects our philosophy of responsible corporate citizenship, and is in keeping with our commitment to pursue practices that will promote human rights.

Refer to Item 1A. "Risk Factors" for further discussion of security risks in Indonesia.

TFM also participates in monthly security coordination meetings with host country security personnel, other mining companies, and representatives from the United Nations to discuss security issues and concerns.

Our reserve estimates are based on the latest available geological and geotechnical studies. We conduct ongoing studies of our ore bodies to optimize economic values and to manage risk. We revise our mine plans and estimates of recoverable proven and probable mineral reserves as required in accordance with the latest available studies. Our estimates of recoverable proven and probable reserves are prepared by and are the responsibility of our employees; a majority of these estimates are reviewed and verified by independent experts in mining, geology and reserve determination.
